Philips Car Active Subwoofer

Underseat Car Active Subwoofer Installation on Toyota Vios 2010

Recently I’ve earned some extra bucks and I decided to reward myself with a new toy, a Philips underseat car active subwoofer that cost me RM730 with the RCA cables. I’ve installed the car active subwoofer  into my GT Street Toyota Vios.

Philips Car Active Subwoofer

Philips Car Active Subwoofer

Initially I would like to do it myself to install this Philips Car Active Subwoofer, but I realized the installation process is quite complex and time consuming. If I am to install it myself, it would take me one whole day. So I decided to let the car accessories shop worker do the installation for me instead. I’ve captured the photos of the installation steps.

There are 2 major items required to be removed :
a) USB/CD player from the Toyota Vios dashboard
b) Driver seat

Remove the USB/CD player from the Toyota Vios Dashboard

Step 1: Remove the V-panel dashboard and top board from Toyota Vios dashboard.

Toyota Vios Panel Taken Off

Toyota Vios Panel Taken Off

Step 2: Loosen up the air conditioner vent panel.

Loose up the air con panel on Toyota Vios Dashboard

Loose up the air con panel on Toyota Vios Dashboard

Step 3: Remove the 4 screws that are attached to the USB/CD player.

Step 4: Take out the USB/CD player and connect the RCA cables from the USB/CD player to the Philips Active Subwoofer.

connect RCA cables to CD/USB Player

connect RCA cables to CD/USB Player

Step 5: Now we are going to connect the RCA cables to the Philips Active Subwoofer. Before that, we need to remove the driver seat to set up the wiring.

Remove Driver Seat in Toyota Vios

Step 6:  Remove the driver seat by unscrewing the 4 nuts. The nuts are tightened with by the manufacturer and are very tight.

Remove the driver seat from Toyota Vios

Remove the driver seat from Toyota Vios

Step 7: Connect the RCA cables to the Philips Active Subwoofer and wire dressing under the driver seat.

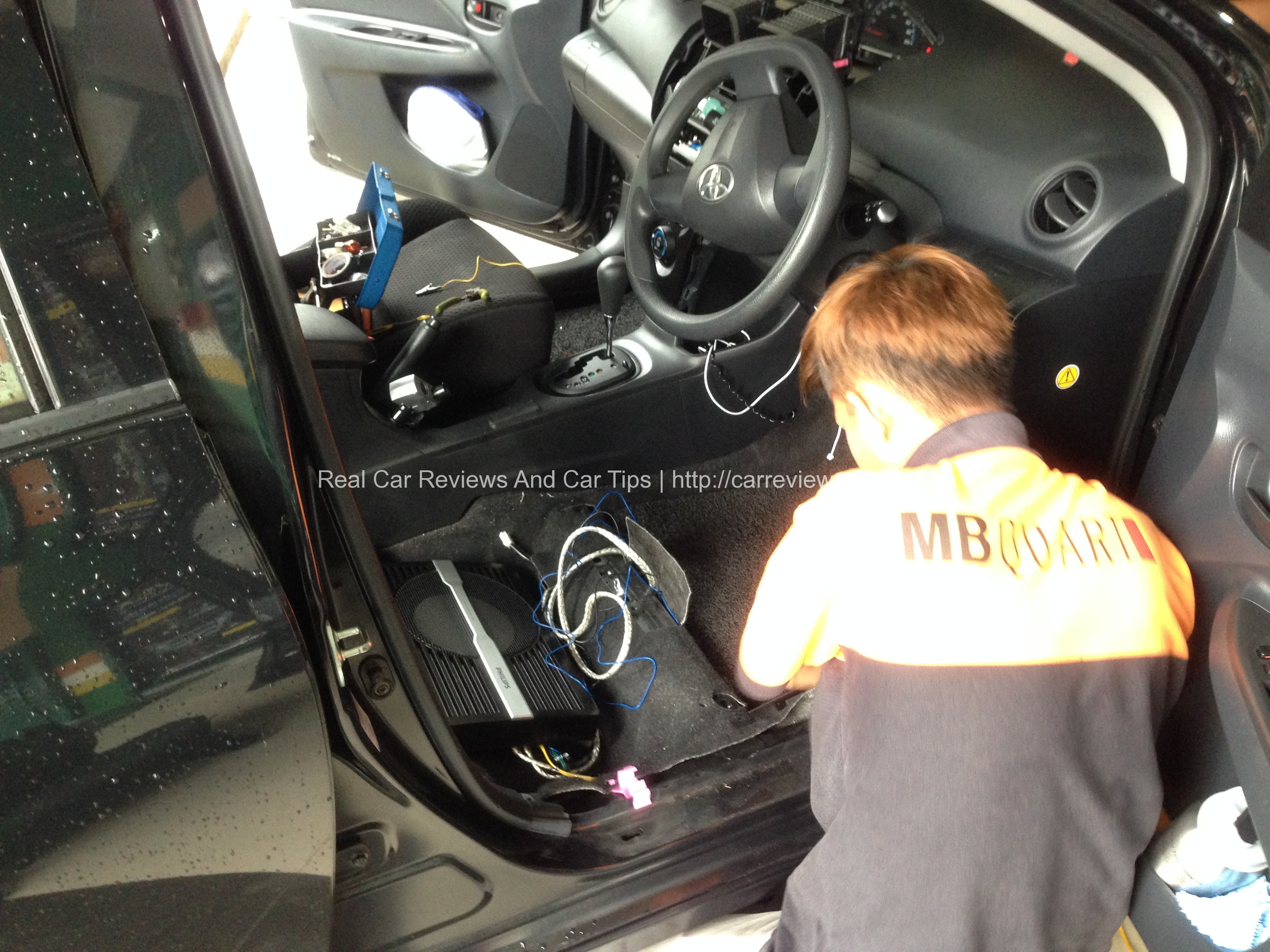

Connect RCA cables and Power cable to the Philips Active Subwoofer

Connect RCA cables and Power cable to the Philips Active Subwoofer

Installation of Philips Active Subwoofer into Toyota Vios 2

Installation of Philips Active Subwoofer into Toyota Vios 2

Installation of Philips Active Subwoofer into Toyota Vios

Installation of Philips Active Subwoofer into Toyota Vios

Step 8: Connect the Power cable from the Philips Active Subwoofer to the car battery.

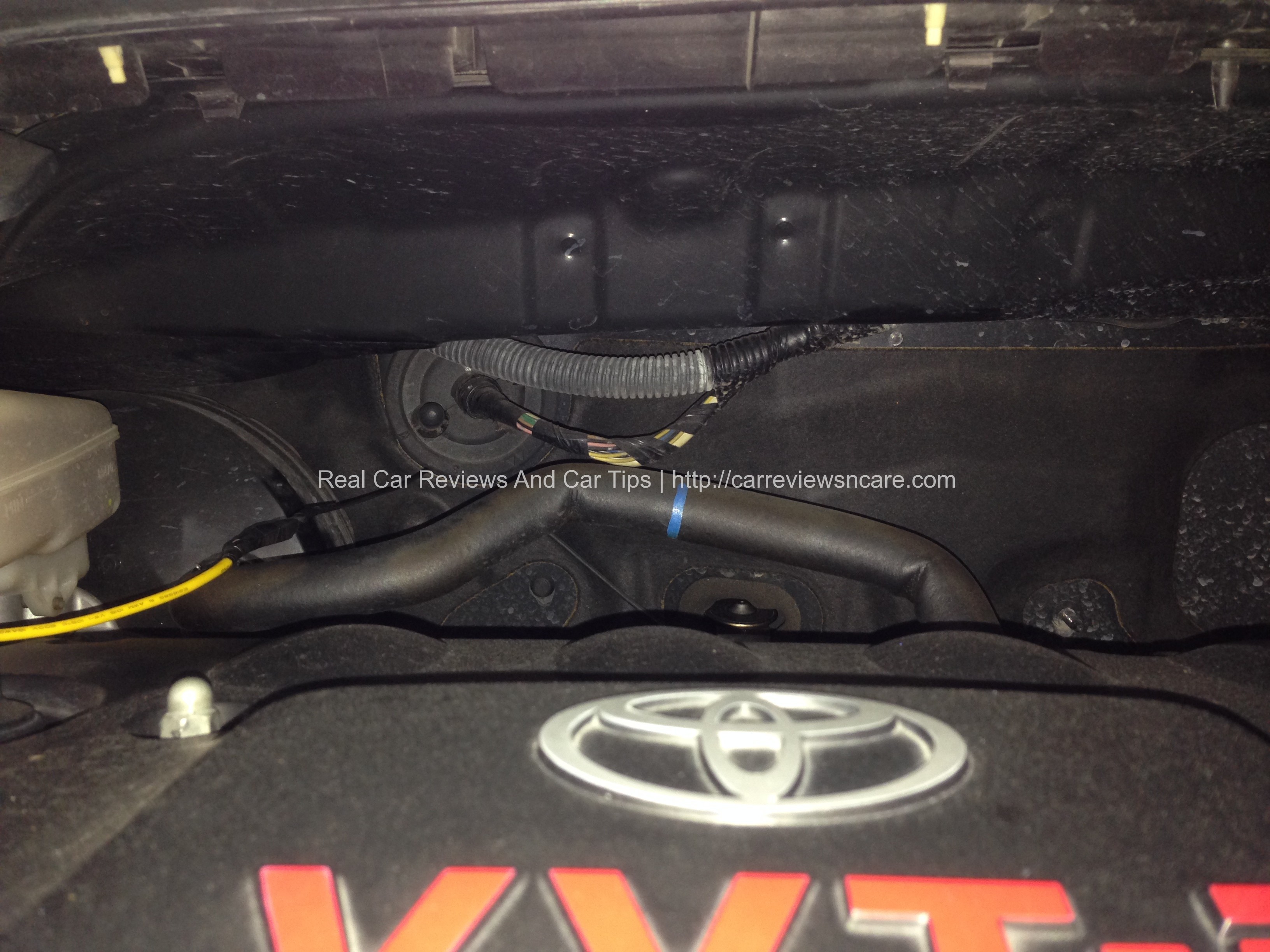

Power Source Cable from Philips Active Subwoofer to the car battery

Power Source Cable from Philips Active Subwoofer to the car battery

Step 9: Test out the Philips Active Subwoofer to ensure that everything is working.

Step 10: Install back the driver seat and the panel dashboard.

Philips Active Subwoofer is under the driver seat of Toyota Vios

Philips Active Subwoofer is under the driver seat of Toyota Vios

Good effect! The bass effect is strong and exceed my expectation. The whole Toyota Vios is ‘shaking’ when the bass sound is playing. Now I love my car even more!
