Painted Toyota Vios Front Brake Caliper in Red
COOL People Love to Share:

Paint brake calipers is relatively easy as long there is someone to remove the car wheels for us. My Toyota Vios mileages hit another 10,000KM, with total mileages of 70,610KM. Our vehicles are recommended to change the engine oil, oil filter and wheels balancing with alignment for every 10,000KM.

I took this opportunity to paint the Toyota Vios brake calipers too!

I went to the Chang Soon Tyre Service located in Relau to perform my routine car services and perform the painting on the brake calipers.

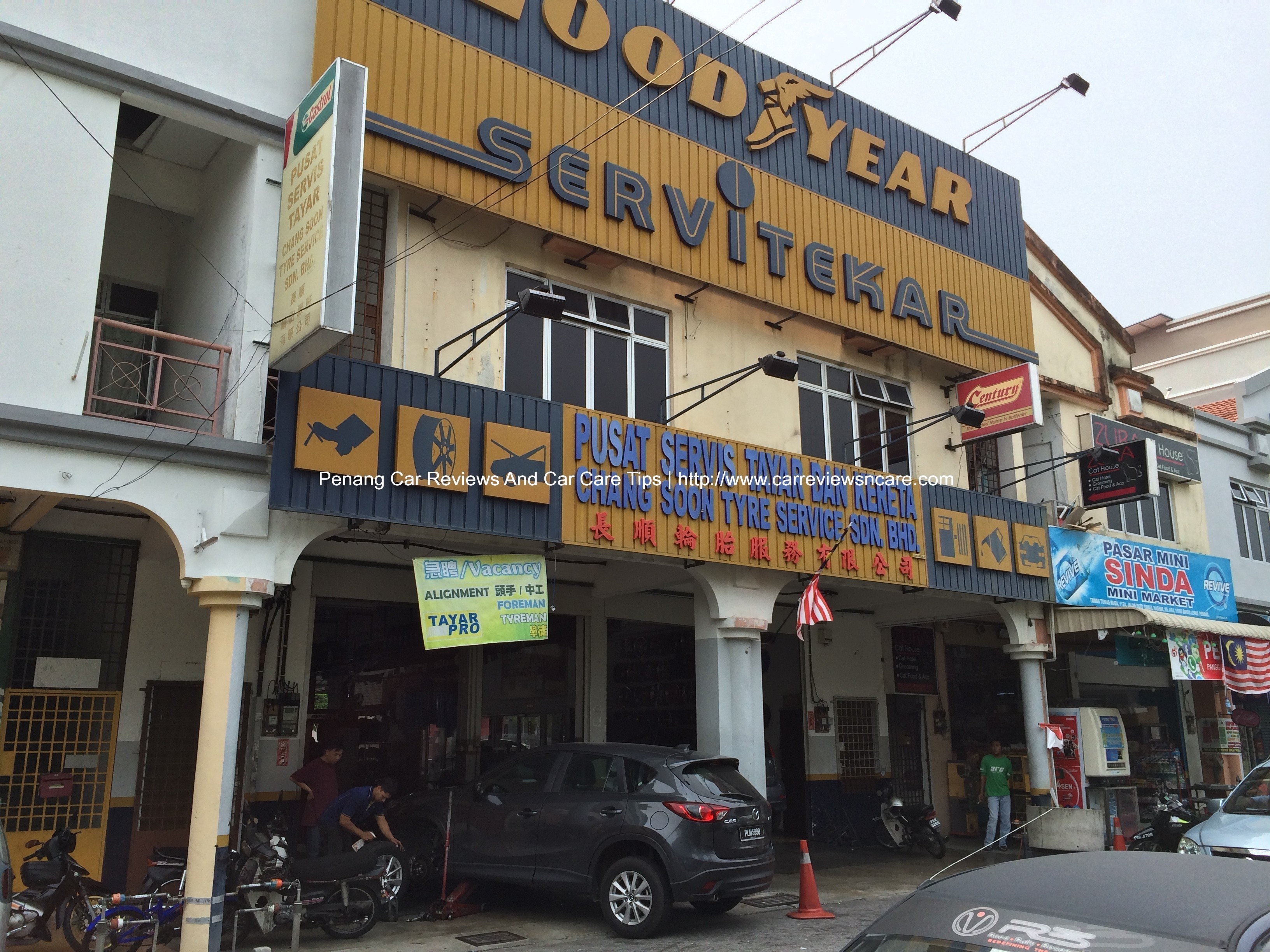

Chang Soon Tyre Service Sdn Bhd

Chang Soon Tyre Service Sdn Bhd

There are 3 bottles of spray cans that I required to prepare before I went to the workshop for the brake calipers paint. The 3 bottles paint are white paint, red paint, and lacquer that cost me RM18:

White, red, and lacquer spray cans

White, red, and lacquer spray cans

Step by step how to DIY paint brake calipers

  1. Remove the 4 tires from the vehicle.
  2. Clean the front brake calipers and drum brakes with water and soap to remove the grease then dry it with air blower:

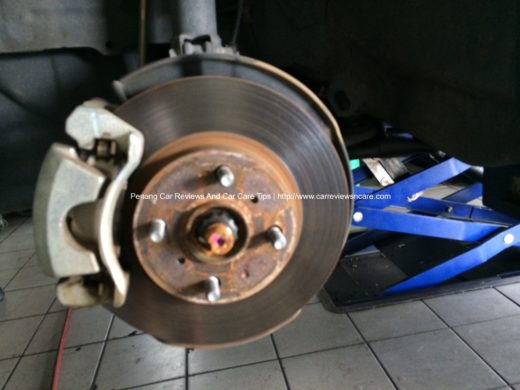

    Toyota Vios Front Brake Caliper

    Toyota Vios Front Brake Caliper

    Toyota Vios Rear Drum Brake

    Toyota Vios Rear Drum Brake

  3. Since I had them to realigned my drum brake tension, so they are required to remove the drum from the drum brake (this step is not required if you just want to paint the drum):

    Toyota Vios Drum Brake

    Toyota Vios Drum Brake

  4. The painting started with white color. The white paint is sprayed from the can evenly on the brake calipers. Several layer (at least 3 layers of each paint) of paint is required to assure the paint is evenly spread on the brake calipers with the interval of 10 minutes. We used newspapers to cover the drive shaft to prevent it from overspray the paint to another compartment:

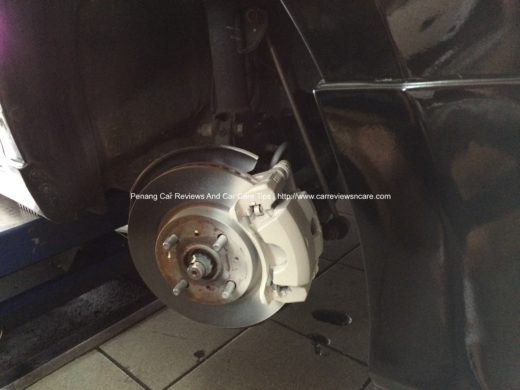

    White Paint on Toyota Vios Front Brake Caliper

    White Paint on Toyota Vios Front Brake Caliper

    *The purpose of putting white paint as our base color to the brake calipers so that the red color would look brighter and cleaner.

  5. After 3 layers of white paint, now we proceed for another 3 layers of red paint. The steps are similar to how we apply the white paint earlier:

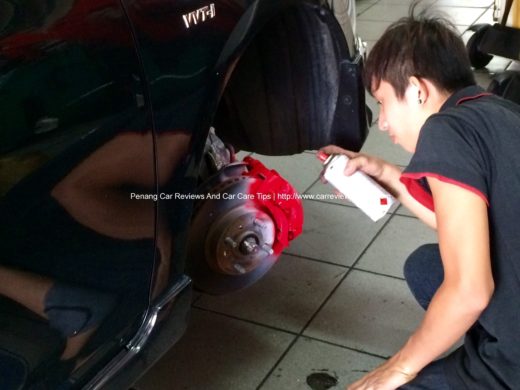

    Red Color Brake Calipers Painting on Toyota Vios

    Red Color Brake Calipers Painting on Toyota Vios

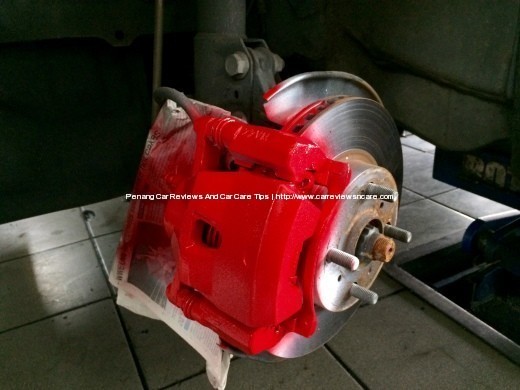

    Painted Toyota Vios Front Brake Caliper in Red

    Painted Toyota Vios Front Brake Caliper in Red

  6. Once we are done with 3 layers of red paint, we shall proceed with another 3 layers of lacquer painting. The purpose of the lacquer is to outshine the red color paint on the brake calipers.
  7. Next, we move to paint the rear drum brake. The steps are same as painting the front brake calipers. We started the painting with white color for 3 layers and then move to red color for another 3 layer, and lastly with lacquer for another 3 layers on the drum covers:

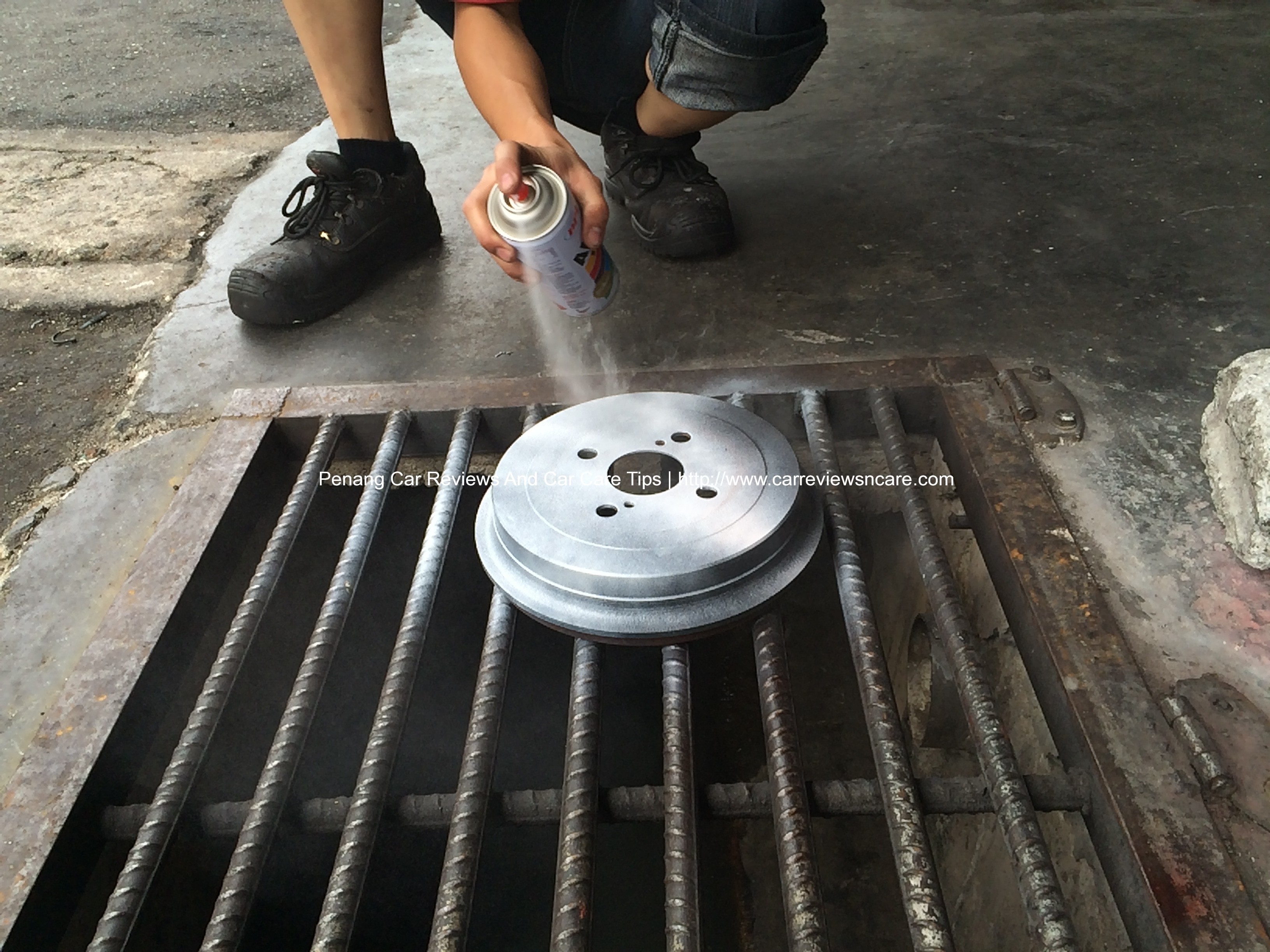

    Painting white color on the Toyota Vios Rear Drum

    Painting white color on the Toyota Vios Rear Drum

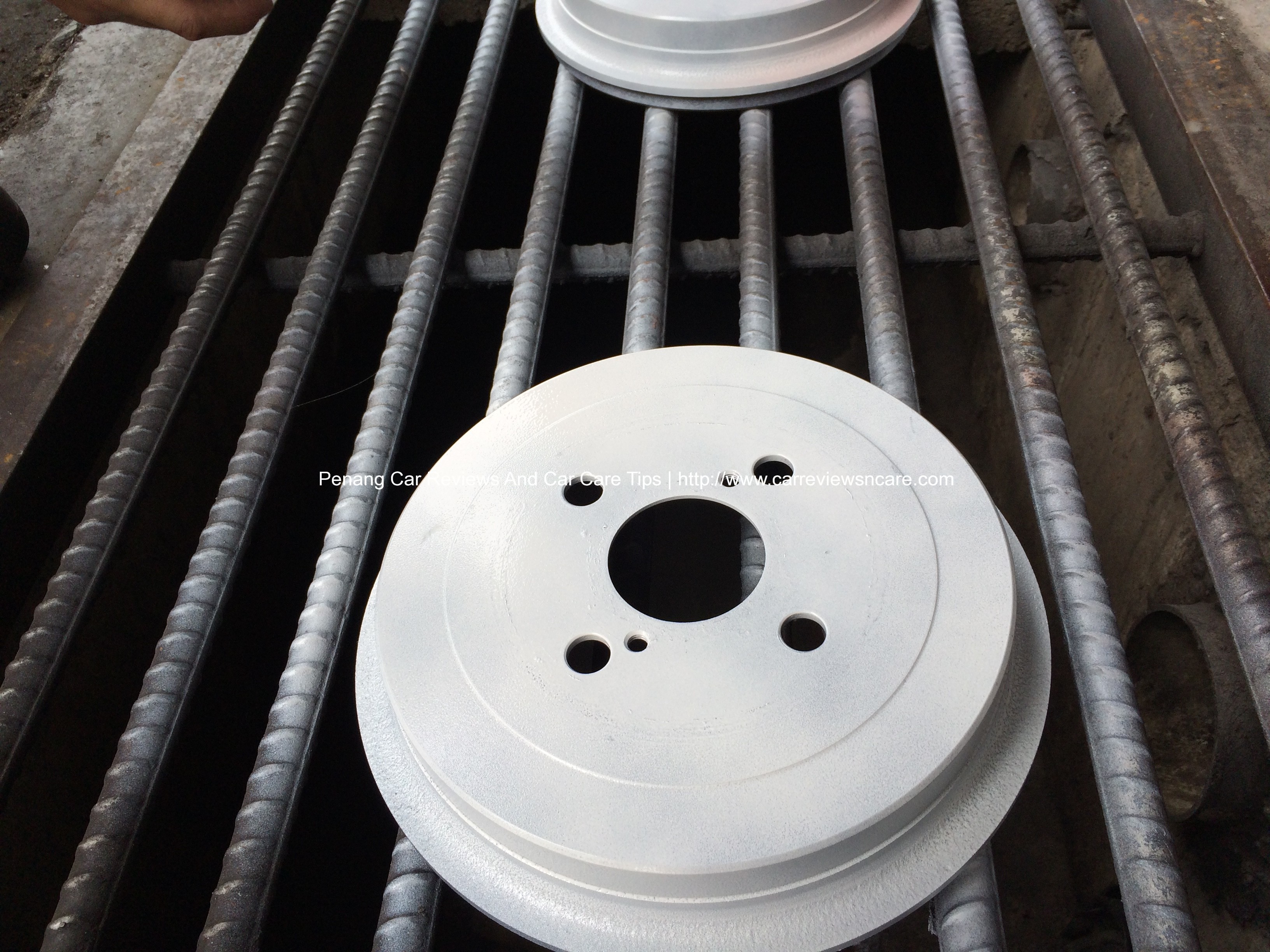

    White color paint on the Toyota Vios Rear Drum

    White color paint on the Toyota Vios Rear Drum

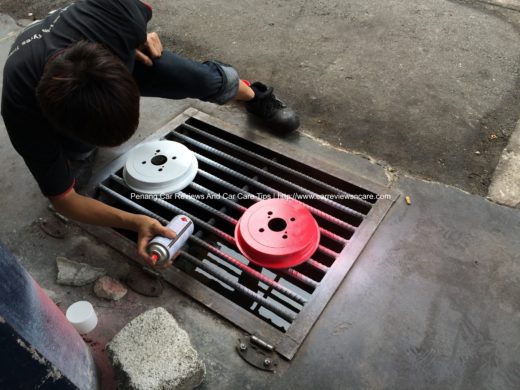

    Painting red color on Toyota Vios Drum

    Painting red color on Toyota Vios Drum

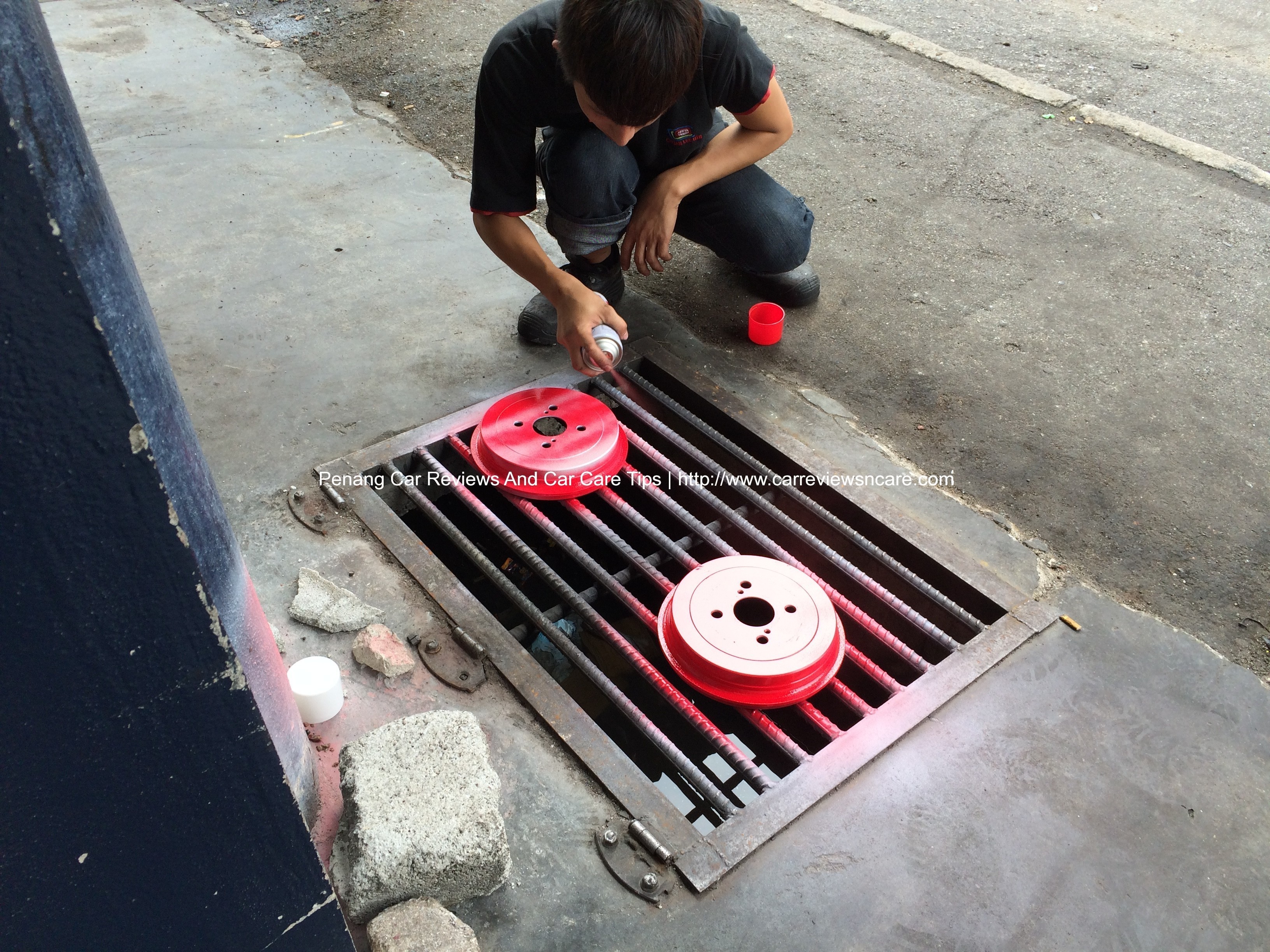

    Painting red color on Toyota Vios Drums

    Painting red color on Toyota Vios Drums

  8. After we completed the lacquer paint, we waited for about 30 minutes for the paints to cured up.
  9. Now we are ready to install back the wheels on the Toyota Vios.

Here, how it looks like after we installed the wheels on the Toyota Vios painted brake calipers and drum brake:

Painted Toyota Vios Front Brake Calipers with TRD Sportivo Rims

Painted Toyota Vios Front Brake Calipers with TRD Sportivo Rims

Toyota Vios TRD Sportivo Wheels with Red Brake Caliper

Toyota Vios TRD Sportivo Wheels with Red Brake Caliper

Painted Toyota Vios Rear Drum Brake with TRD Sportivo Rims

Painted Toyota Vios Rear Drum Brake with TRD Sportivo Rims

Side view of Toyota Vios painted brake calipers

Side view of Toyota Vios painted brake calipers

Front View Painted Brake Calipers Toyota Vios

Front View Painted Brake Calipers Toyota Vios

The workshop’s staffs are friendly and patient to their customer. I will definitely go back to their workshop for my next car service.
